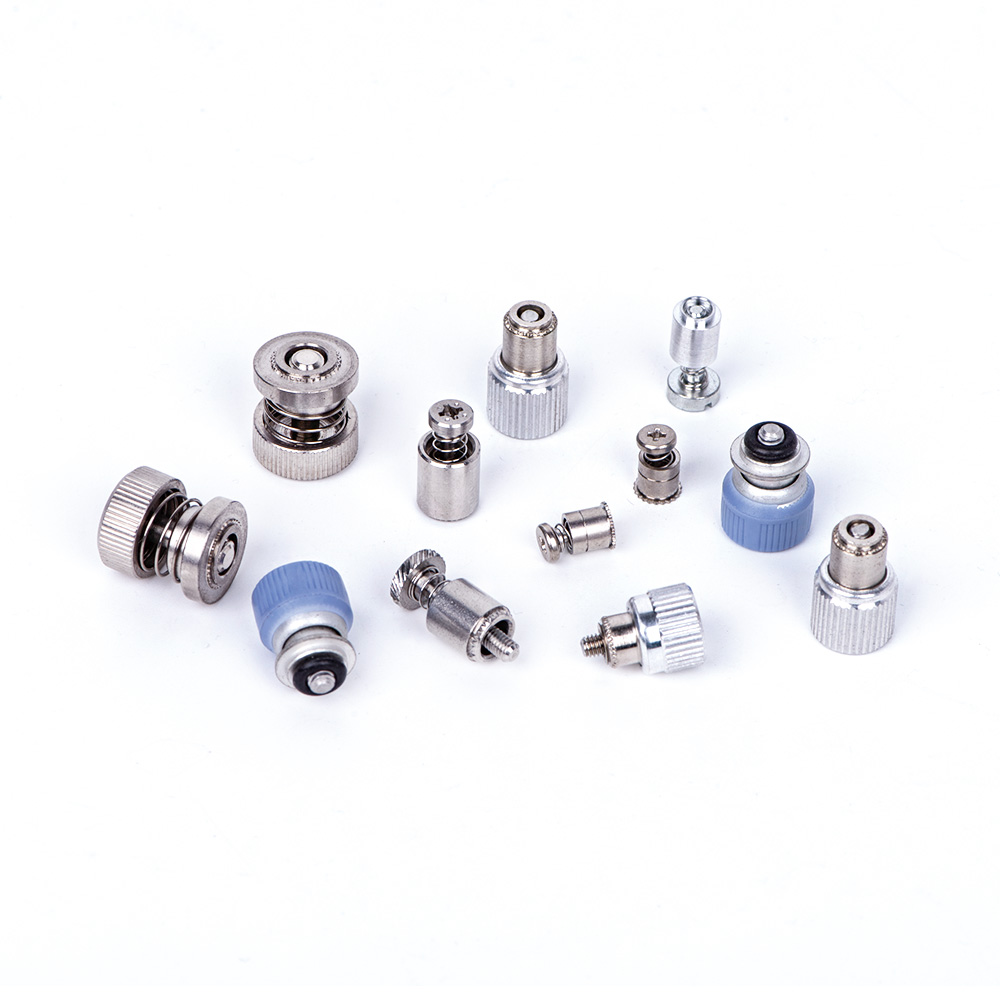

Panel Fastener & Captive screw

Model No.GPF or Gaptive screw
Made inTaiwan

Model No.

GPF30 PANEL FASTENERS and GPFC2P PANEL FASTENERS ASSEMBLIE S Product

Detail Specification Sheet download link

Product introduction

Thread Size

M3~M6

Specification table

GPF30 PANEL FASTENERS

ISO METRIC

Product Code

Thread Code

Screw Length Code

N Max

P Max

R +0.4 -0.13

M ±0.4

S ±0.13

H1 max

H ±0.4

Minimum Sheet Thickness

Hole Size in Sheet +0.08

Minimum distance hole C/L to edge

GPF32

1.47

5.47

10.3

7.6

5.1

8.3

15.3

1.5

5.5

6.6

GPF31

0.97

6.37

11.9

7.6

5.3

8.4

15.4

1.0

6.4

7.4

GPF32

1.47

1.5

GPF31

0.97

7.97

13.5

7.6

5.6

8.5

15.4

1.0

8.4

GPF32

1.47

1.5

GPF32

1.47

9.47

15.9

8.9

6.1

9.7

17.0

1.5

9.5

9.7

UNIFIED

Product Code

Thread Code

Screw Length Code

N Max

P Max

R +0.4 -0.13

M ±0.4

S ±0.13

H1 max

H ±0.4

Minimum Sheet Thickness

Hole Size in Sheet +0.08

Minimum distance hole C/L to edge

GPF30

4.40

.030

.202

.406

.300

.202

.325

.595

.030

.203

.26

GPF31

.038

.040

GPF32

.058

.060

GPF31

6.32

.038

.218

.438

.300

.202

.325

.595

.040

.218

.28

GPF32

.058

.060

GPF31

8.32

.038

.249

.468

.300

.207

.330

.600

.040

.250

.29

GPF32

.058

.060

GPF31

10.32

.038

.311

.530

.300

.200

.335

.605

.040

.312

.33

GPF32

.058

.060

MATERIAL & FINISH:

• Carbon Steel. Bright nickel over copper flash

• For use in sheet hardness of HRB 60 or less

PART NUMBER DESIGNATION

	METRICS	UNIFIED
Type	GPF30	GPF30
Thread Code	M3	4.40
Length Code	30	30

GPFC2P PANEL FASTENERS ASSEMBLIE S Product

ISO METRIC

Product Code

Thread Code

Screw Length Code

N Max

P max

R +0.4 -0.25

M1 ±0.4

M ±0.4

H1 Max

H ±1.02

Driver Size

Minium Sheet Thickne ss

Hole Size in Sheet +0.08

Minimum Distance Hole C/L to Edge

1.6 Aluminium

3.2 Aluminium

GPFC2 P

1.5

6.7

7.9

6.4

9.4

13.8

1.5

6.75

6.4

5.6

1.5

7.9

9.5

7.9

12.2

17.8

1.5

7.95

7.9

7.1

1.5

8.7

10.3

7.9

12.4

17.8

1.5

8.75

8.7

7.9

11.1

3.2

1.5

10.46

11.9

9.5

15.7

23.0

1.5

10.5

9.5

8.7

UNIFIED

Product Code

Thread Code

Screw Length Code

N Max

P Max

R +.015 -.010

M1 ±.016

M ±.016

H1 Max

H ±.040

Drive Size

Minium Sheet Thickne ss

Hole Size in Sheet +.003

Minimum Distance Hole C/L to Edge

.062

Aluminium

.125

Aluminium

GPFC2P

4.40

.060

.264

.312

.250

.000

.370

.540

.060

.265

.25

.22

.375

.125

6.32

.060

.280

.344

.250

.000

.380

.540

.060

.281

.28

.25

.375

.125

.500

.250

8.32

.060

.311

.375

.312

.000

.480

.705

.060

.312

.31

.28

.437

.125

.562

.250

10.32

.060

.343

.406

.312

.000

.490

.705

.060

.344

.34

.31

.437

.125

.562

.250

MATERIAL & FINISH:

• 300 series stains steel, passivated.

• For use in sheet hardness of HRB 70 or less

PART NUMBER DESIGNATION

	METRICS	UNIFIED
Type	GPFC2P	GPFC2P
Thread Code	M3	4.40
Length Code	40	40

Detail Specification Sheet download link

Ordering information

1.Please contact us first, price negotiable, your demand and satisfaction is our greatest power forward with the target.

2.Genius Fastener Solutions Co., Ltd are manufacturer of precision parts in Taiwan and China. We provide the excellent quality, competitive prices and best services in our business target with ISO 14001 and IATF16949 certificated. We will be your best choice.
