Insert Nut
- Model No.GK06
- Made inTaiwan
Model No.
GK-06 Series
Product introduction
Key Features

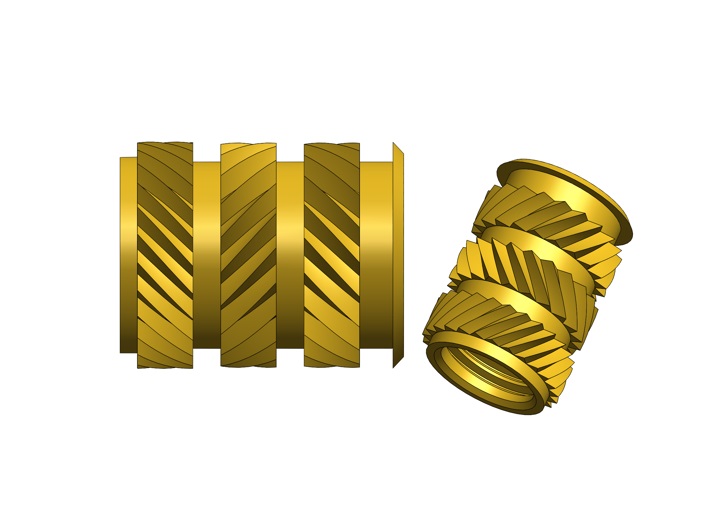

GK-06 is a blind ended threaded insert which has been introduced to meet the needs of those moulders who, for a variety of reasons, prefer to mould-in. The unique design of three opposed helical knurl bands combined with the included recesses give extremely high levels of performance in both pull-out and torque tests.
Advantages
1.Blind ended – prevents ingress of plastic.
2.Counterbore prevents ingress of plastic and eases assembly on locating pins.
3.Unique design ensures high levels of performance.
Specification table
 |
ISO METRIC Unit: Millimetres
| Thread Size | L Insert Length | E Insert Ø | F Min | A Counterbore Depth |
| M2 | 5.5 | 3.4 | 3.6 | 1.0 |
| M2.5 | 6.4 | 4.3 | 4.0 | 1.2 |
| M3 | 7.3 | 4.7 | 4.6 | 1.3 |
| M3.5 | 9.2 | 5.5 | 6.0 | 1.6 |
| M4 | 10.2 | 6.3 | 6.7 | 1.8 |
| M5 | 11.2 | 7.3 | 7.4 | 2.0 |
| M6 | 14.4 | 9.8 | 8.1 | 2.0 |
| M8 | 16.5 | 11.4 | 11.1 | 2.3 |
| M10 | 17.9 | 13.8 | 11.9 | 2.4 |
Ordering information
1.Please contact us first, price negotiable, your demand and satisfaction is our greatest power forward with the target.
2.Genius Fastener Solutions Co., Ltd are manufacturer of precision parts in Taiwan and China. We provide the excellent quality, competitive prices and best services in our business target with ISO 14001 and IATF16949 certificated. We will be your best choice.
