Insert Nut
- Model No.GK-02
- Made inTaiwan
Model No.
GK-02 Series
Product introduction
Key Features

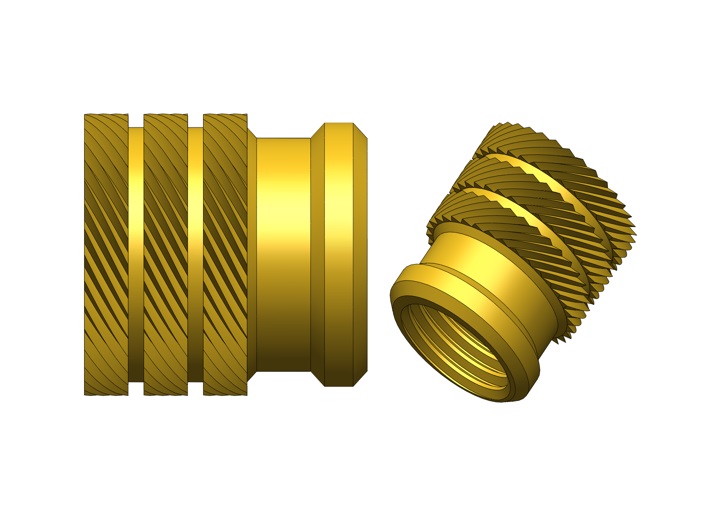

GK-02 Series has been designed to cope with the difficulties presented by hard brittle thermoset materials. The sharp precision knurl pattern cuts into these materials reducing radial stresses and allowing thinner boss walls than many other inserts.
Advantages
1.Easy press-in insertion
2.High pull-out performance in most thermoplastics
3.Self-aligning—Assists Installation
Thread Size
Insert Type GK-02 series Thread Size from M2 to M10
Specification table
 |  |
ISO METRIC Unit: Millimetres
Thread Size | L Insert Length | E Insert Ø | B Pilot End Ø | C Hold Size | Min. Wall Thickness |
| M2 | 4.1 | 3.3 | 3.0 | 3.1 | 1.6 |
| M2.5 | 5.3 | 4.2 | 3.7 | 3.8 | 2.0 |
| M3 | 5.3 | 4.2 | 3.7 | 3.8 | 2.0 |
| M3.5 | 6.3 | 5.0 | 4.5 | 4.6 | 2.5 |
| M4 | 7.4 | 5.8 | 5.3 | 5.4 | 2.5 |
| M5 | 8.3 | 6.6 | 6.1 | 6.2 | 2.5 |
| M6 | 9.2 | 8.2 | 7.7 | 7.8 | 2.8 |
| M8 | 9.2 | 9.7 | 9.3 | 9.3 | 3.8 |
| M10 | 9.2 | 12.7 | 12.2 | 12.3 | 5 |
Ordering information
1.Please contact us first, price negotiable, your demand and satisfaction is our greatest power forward with the target.
2.Genius Fastener Solutions Co., Ltd are manufacturer of precision parts in Taiwan and China. We provide the excellent quality, competitive prices and best services in our business target with ISO 14001 and IATF16949 certificated. We will be your best choice.
