Miniature Self Clinching Fastener
GX/GOX
  • Model No.GX/GOX
  • Made inTaiwan

Model No.

     GX/GOX Series

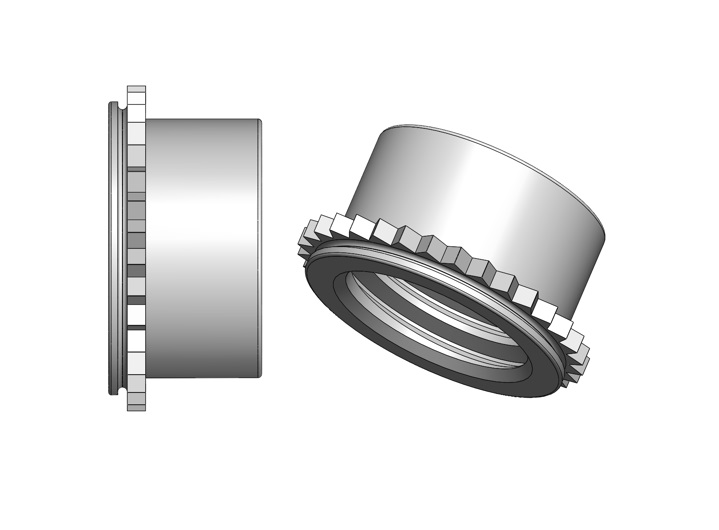

Product introduction



正鉚

反鉚

Key Features

    These fasteners are designed to provide maximum security within a minimum size envelope.

Miniature Self-Clinching Fasteners can be supplied either free running or with controlled self-locking threads.

Advantages

    The torque-resistance of the knurl greatly exceeds the torque that can be exerted by the self-locking feature

Thread Size

   M2~M3

Specification table



                                                                                              TYPE GX/GOX




ISO METRIC

TYPE

Self Locking

Thread Size

S

Sheet Thickness

max

R

max

E

±0.13

L1

+0.4

C

+0

-0.13

Hole

Size

in

sheet

+0.08

-0.00

Minimum distance  hole C/L to sheet edge

GX

M2

0.8

0.8

3.05

4.07

1.6

3.53

3.6

3.58

GX

M2.5

0.99 – 1.14

1.02

3.96

4.88

1.9

4.34

4.45

4.4

GOX

1.50 – 1.78

1.53

GX

M3

0.99 – 1.14

1.02

5.23

8.17

2.55

7.34

7.4

5.2

GOX

1.50 – 1.78

1.53



MATERIAL:

FINISH:

SS -300 series Stainless Steel

Passivated

S - Carbon Steel

Nickel Plating



PART NUMBER DESIGNATION



METRICS

Type

GX

Thread Code

M3





 SUS ADDED “SS” : GXS – SS-M3

              GX    -      S          -        M3          X           4       -         1

            Type     Material         Thread                Length       Shank No

Ordering information

      1.Please contact us first, price negotiable, your demand and satisfaction is our greatest power forward with the target.

      2.Genius Fastener Solutions Co., Ltd are manufacturer of precision parts in Taiwan and China. We provide the excellent quality, competitive prices and best services in our business target with ISO 14001 and IATF16949 certificated. We will be your best choice.
