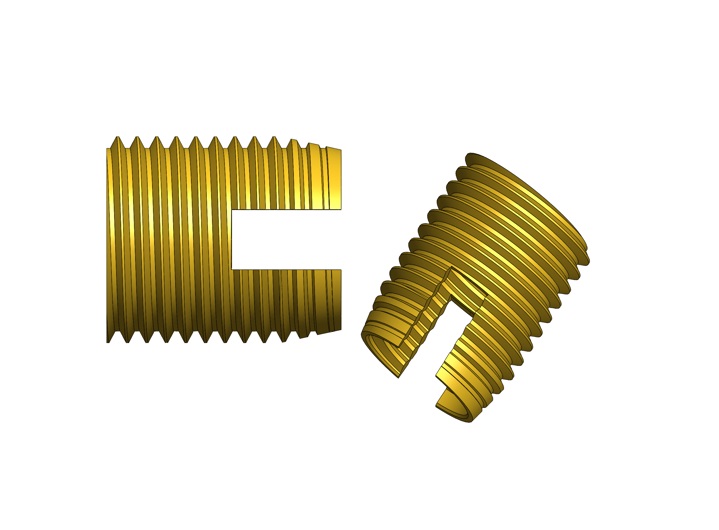

Insert Nut
- Model No.GK03
- Made inTaiwan
Model No.
GK-03 Series
Product introduction
Key Features
GK-03 series designed for installation into a wide range of thermoplastic and thermosetting plastic materials. They are particularly suitable for applications involving high jack-out loading and materials with low core strengths.
Advantages
1.High pull-outresistance
2.Ideal where jack-out loading is unavoidable
3. Can carry high loads in weak plastic
Thread Size
Insert Type GK-03 series Thread Size from M2.5 to M12
Specification table
INSERTS | HEADED INSERTS | STUDS |
 |  |  |
GK-03 DIMENSIONS
INTERNAL | Thread sizes | A | B | C | D | Rec. Hole Size Thermoplastics | Rec. Hole Size Thermosets -0.00 +0.10 | Min. Wall Thickness |
Unified | ISO Metric | mm | mm | mm | mm | mm | mm | mm |
4-40 | M2.5 | 6.0 | 0.58 | 6.0 | 4.5 | 4.0-4.1 | 4.1-4.3 | Evaluate By pre-Production tests |
- | M3 | 6.0 | 0.58 | 6.5 | 5.0 | 4.5-4.6 | 4.6-4.8 | |
6-32 | M3.5 | 8.0 | 0.73 | 7.5 | 6.0 | 5.3-5.4 | 5.5-5.7 | |
8-32 | M4 | 8.0 | 0.89 | 8.0 | 6.5 | 5.8-5.9 | 6.0-6.2 | |
10-32 | M5 | 10.0 | 1.06 | 9.5 | 8.0 | 7.1-7.2 | 7.3-7.6 | |
1/4-20 | M6 | 14.0 | 1.32 | 12.0 | 10.0 | 8.6-8.8 | 9.0-9.4 | |
5/16-18 | M8 | 15.0 | 1.32 | 14.0 | 12.0 | 10.6-10.8 | 11.0-11.4 | |
3/8-24 | M10 | 18.0 | 1.57 | 16.0 | 14.0 | 12.6-12.8 | 13.0-13.4 | |
1/2-13 | M12 | 22.0 | 1.57 | 18.0 | 16.0 | 14.6-14.8 | 15.0-15.4 |
Ordering information
1.Please contact us first, price negotiable, your demand and satisfaction is our greatest power forward with the target.
2.Genius Fastener Solutions Co., Ltd are manufacturer of precision parts in Taiwan and China. We provide the excellent quality, competitive prices and best services in our business target with ISO 14001 and IATF16949 certificated. We will be your best choice.
