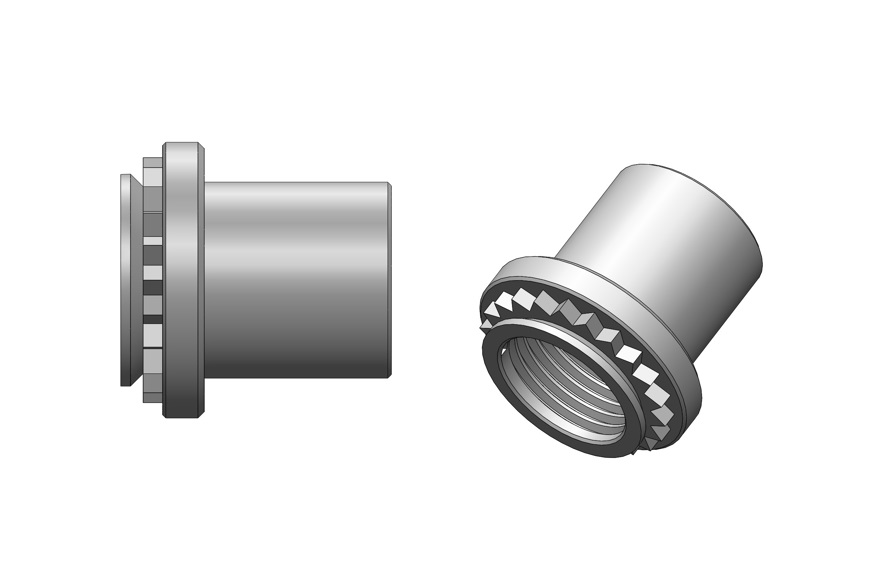

Self-Clinching Fastener
GB/GBS
  • Model No.GB/GBS
  • Made inTaiwan

Model No.

    GB/GBS Series

Product introduction

    Blind Nuts will encapsulate the internal loose fastener. The blind nut is a quicker and more economical method compared to loose nut and screw-type hardware which require special seals.

正鉚

反鉚

Key Features

    These fasteners have been designed to provide permanent blind threads in thin sheet (from 1mm). Blind end prevents contamination from foreign bodies. Self-locating, they are easily installed into punched or drilled holes using any standard squeeze press. Ensure surfaces remain parallel for optimum installation. Available in steel or stainless steel. Optional finish – zinc plating on steel.

Advantages

       1. Body design protects internal threads from the entrance of foreign matter
       2. Available in heat-treated carbon steel with a zinc finish, as well as a 300 series stainless steel with a passivated finish.
       3. Available in sizes M3-M6  & 4-40 through ¼-20

Thread Size

    M3 to M6

Specification table



                                                                      TYPE GB/GBS





Product Code

Thread Size

Shank No.

S

Minimum

Sheet Thickness

A

max

R

Cylinder

dia.R

max

E

±0.4

    L1

±0.25

L

max

F

Minimum

F Max

(full threads)

C

Shank

Dia.

C max

H

Hole

Size in sheet

+0.08

-0.00

C/L

Min. Distance  hole C/L to sheet edge

GB

GBS

M3

4-40

1

1.0

0.97

3.80

6.35

8.5

9.6

5.3

4.22

4.25

4.8

2

1.4

1.37

-

6-32

1

1.0

0.97

4.29

7.10

8.5

9.6

5.8

4.75

4.76

5.5

2

1.4

1.37

M4

8-32

1

1.0

0.97

5.20

7.95

9.8

11.2

7.1

5.38

5.4

6.9

2

1.4

1.37

M5

10-24

1

1.0

0.97

6.00

8.75

9.8

11.2

6.8

6.38

6.4

7.1

2

1.4

1.37

M6

1/4 -20

1

1.4

1.37

7.80

11.0

12.7

14.3

7.8

8.72

8.75

8.6

2

2.3

2.21



MATERIAL:FINISH:
GB-S – Heat treated Carbon SteelSteel – Zinc Plating
GB-SS – 300 series Stainless SteelStainless Steel – Passivated



PART NUMBER DESIGNATION
 UNIFIEDMETRICS
TypeGBGB
Thread Size4-40M2
Shank Code11
Finish (if applicable)ZincZinc



Part Number Designation

GB               - S S     -        M3         X         9.6         -            1

Type        Material        Thread              Length           Shank Code
